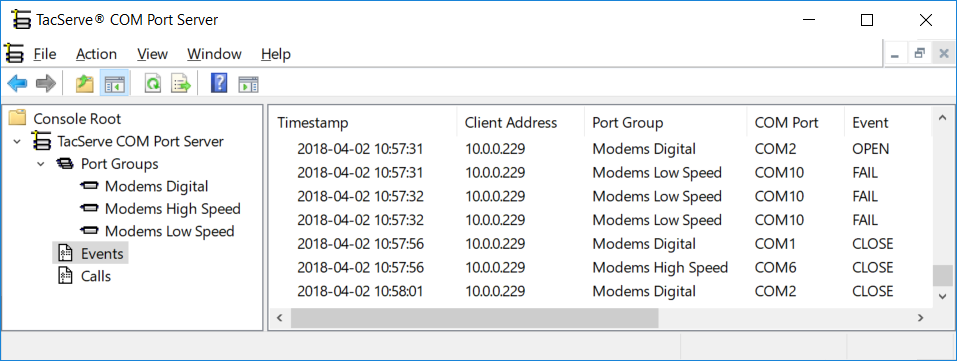

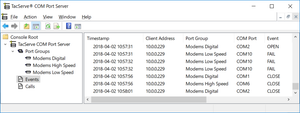

modem server event log for TacServe
software modem server set up for client redirector

TacServe® Modem Pool Server

Tactical Software

$500.00 Sale

Version 4.10  * FINAL RELEASE *
For Windows 11 24H2, Windows Server 2022 (x64, Intel)

End User License Agreement

Download 30-day Free Trial
Windows restart not required


Using the TacServe Modem Pool Server

In the TacServe Tool on the server computer:

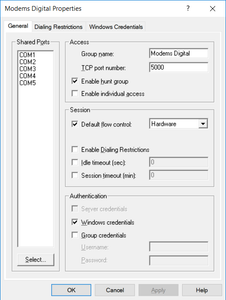

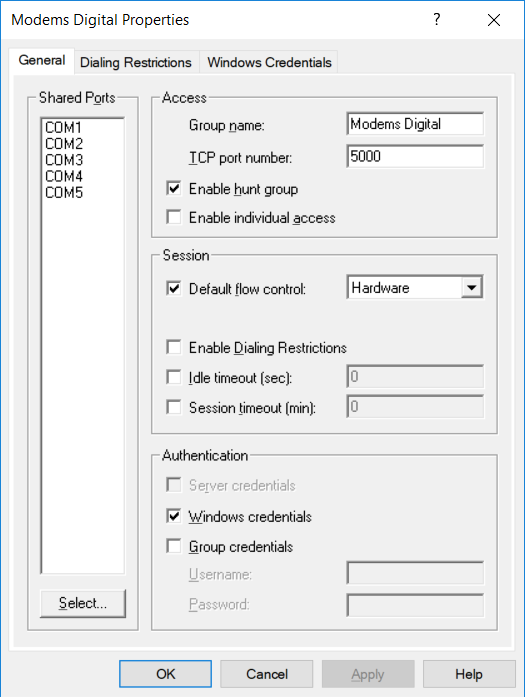

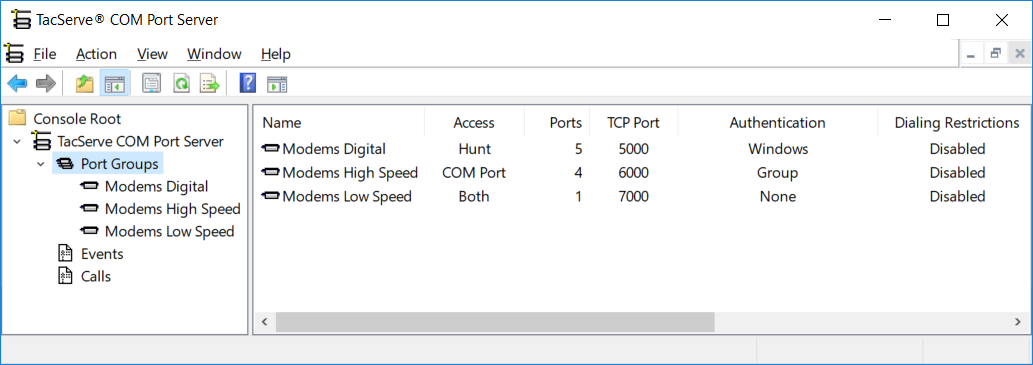

  • Create a Port Group that will provide one or more modems on demand at a TCP port number you choose
  • Select local COM ports to join this Port Group

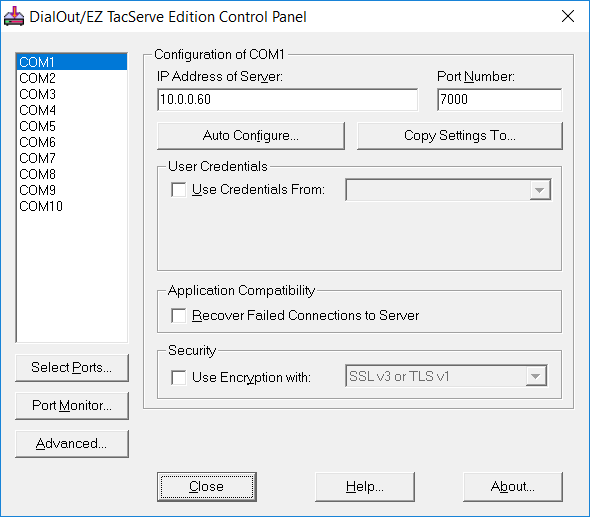

In the DialOut/EZ Control Panel on each client PC:

  • Choose the COM port numbers for virtual COM ports
  • Configure each virtual COM port to the IP address of the modem pool server and TCP port number of the Port Group
  • Use Auto Configure to verify modem pool connectivity

In your application:

  • Open any DialOut/EZ virtual COM port to access a modem in the TacServe Port Group
  • Read/write serial data, as with a local modem
  • Close the virtual COM port to release the modem back to the TacServe Port Group

For more, see the TacServe Quick Start Guide.




Scalable, Fast, Flexible

  • Up to 4,096 modems for large applications
  • Always available, user login not required
  • Outbound and inbound connections

Enterprise-grade Capabilities

  • Makes any local modem or serial port available to client redirectors
  • Works with all modems that are available on local COM ports
  • Supports COM Port Control Protocol (RFC 2217)
  • Does not use proprietary TCP/IP protocols
  • Includes unlimited site license for DialOut/EZ Redirector
  • Port groups, each with own access controls
  • MMC-based user interface with remote administration
  • Real-time activity display
  • Call and event logs available in database via ODBC

Secure

  • Rich set of features for authentication, authorization, access controls
  • Rule-based dialing controls with pattern matching and accept/deny
  • Settings and trace logs can be restricted to Administrators





Is the 30-day trial software a full version of TacServe?

Yes, for up to 256 active ports.  Download and run the TacServe installer and leave the license key blank to begin the trial period.

Can I create a modem pool with more modems than I use at one time?

Yes.  Your TacServe license key controls only the number of modems that are simultaneously active by being connected to a DialOut/EZ virtual COM port.
